Physio Magneto Therapy
-
Physio Magneto can perform a magnetic field that create an extraordinary healing effect. There are over 2,000 medical research studies in support of the effectiveness electromagnetic fields in tissue repair, also been used for accelerating bone union.
--- Application ---
1) Degenerative joint diseases
2) Musculoskeletal disease
3) Chronic inflammation of tendons and joints -
Characteristic

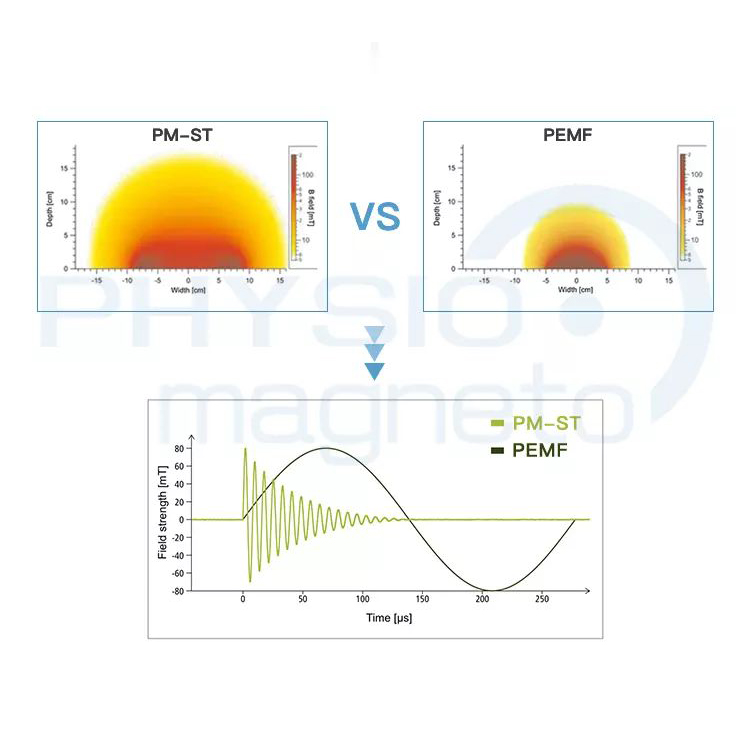

Physio Magneto differs from general forms of magnetic field therapy or PEMF due to the high oscillation frequency of 1000 - 3000 Hz. This property enables a high penetration depth (18cm) and large range of indications.
The energy and frequency of magnetic pulses must within the therapeutically effective range - 10mT (millitesla) and upward. With this pulse intensity, it is possible to achieve a therapeutic effect in the body cell.
The individual pulses penetrate the tissue so that even deeper tissue layers can be reached. Due to the short duration of the indivicual pulses, there is no temperature increase in the tissue.
Advantages
- Non-invasive, outpatient therapy (with almost no side effects)
- Patients do not have to remove their clothes
- No consumable accessories, easy to maintain
- High level of patient comfort, easy to use
- Effective and fatigue-free operation

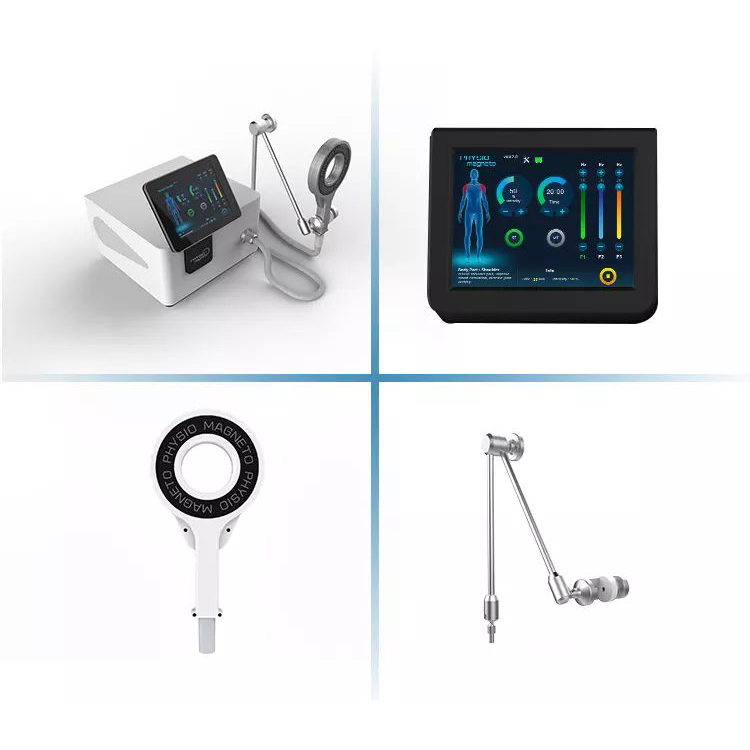

Accessories
- Applicator * 1
- Flexible Holding Arm * 1
-
-

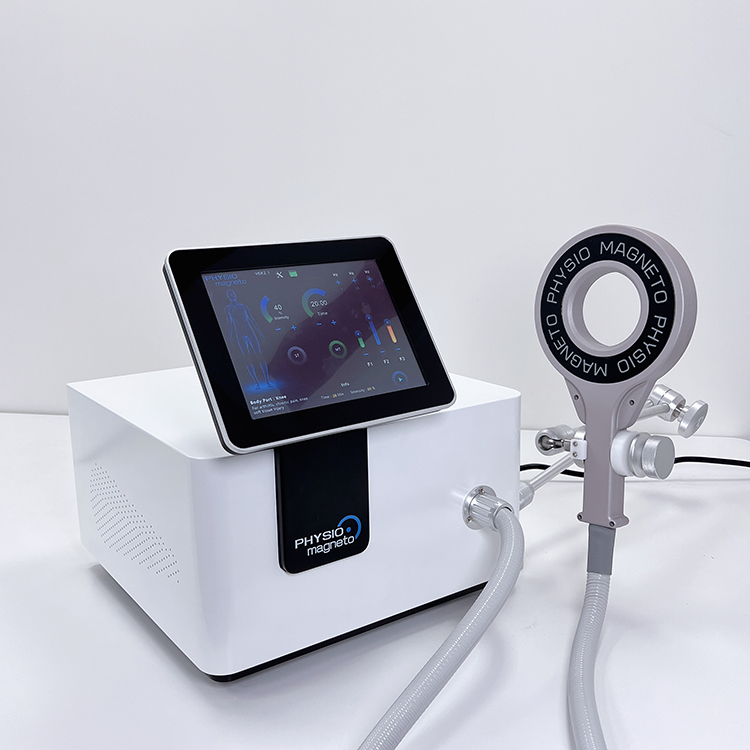

NamePhysio Magneto Magnetotherapy Device
-
Model NumberPM-ST-4
-
TechnologyExtracorporeal Magnetotransduction Therapy
-
TypeTabletop
-
Monitor10.4" Touch Screen
-
Voltage100 - 240 V
-
Maximum Field Strength4T (at the coil)
-
Magnetic Field Strength0.4T (4cm from the coil)
-
Performance of Magnetic Field92 T/s
-
Oscillation Frequency1 - 3000 Hz
-
Chiller Tank Level2.5 Lit
-
Treatment Time10 - 20 minutes
-
Size77.0 x 60.0 x 52.0 cm
-
Weight48 kg
-
